雙連體式振動電機

雙連體式振動電機是新鄉宏源科技電機公司開發研制的新型國家專利產品,該產品是在振動電機基礎上發展的一種新結構原理振源，兩電機連為一體,作直線運動,具有性能可靠、占用空間小、維護簡單、使用壽命長等優點,是中小型號振動設備的理想振動源.
Double style vibration motor is that xinxiang hongyuan company developed a new type of national patent product, the product is based on the vibration motor development, the principle of a new structure of source is an organic whole repeatedly two motor, linear motion, with reliable performance, small footprint, simple maintenance, long life and other advantages, is an ideal vibration source to middle and small types of vibration equipment.

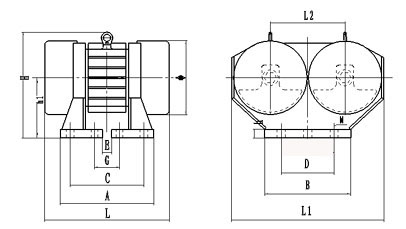

型號		激振力(KN)	功率(KW)	電流(A)	主要結構尺寸
型號		激振力(KN)	功率(KW)	電流(A)	L	L1	L2	H	A	B	C	D	E	G	h	h1	ф	n-ф	重量（KG）
HYSL	2X5-4	2X5	2X0.4	2X1.15	340	388	190	280	182	240	104	180	52		25	175	170	4-18	64
HYSL	2X8-4	2X8	2X0.75	2X1.84	380	390	190	280	197	240	119	180	70		25	175	175	4-20	80
HYSL	2X17-4	2X17	2X1.5	2X2.7	460	430	220	290	237	240	159	180	103		25	180	210	4-22	115
HYSL	2X20-4	2X20	2X2.0	2X4.1	490	524	285	355	366	310	316	235	195		26	205	256	4-28	184
HYSL	2X30-4	2X30	2X2.5	2X5.75	490	524	285	355	366	310	316	235	195		26	205	256	4-28	194
HYSL	2X8-6	2X8	2X0.75	2X1.84	440	430	220	285	211	240	131	180	83		25	180	210	4-22	120
HYSL	2X12-6	2X12	2X1.0	2X2.1	630	430	220	285	231	240	151	180	103		25	180	210	4-22	140
HYSL	2X20-6	2X20	2X2.0	2X4.1	451	556	306	405	372	300	306	230	150		30	255	300	4-26	210
HYSL	2X30-6	2X30	2X2.5	2X5.75	490	556	306	405	372	300	306	230	150		30	255	300	4-26	242
HYSL	2X50-6A	2X50	2X3.7	2X7.4	625	656	340	450	435	400	375	268	103	161	30	285	330	8-32	394
HYSL	2X75-6	2X75	2X5.5	2X11	865	736	368	470	515	400	451	268	171	231	35	285	330	8-32	560
HYSL	2X100-6	2X100	2X7.5	2X17	790	810	410	560	500	400	441	268	140	200	40	328	376	8-32	720
HYSL	2X150-6	2X150	2X11	2X25	873	810	410	560	555	400	491	268	195	251	40	328	376	8-32	810
